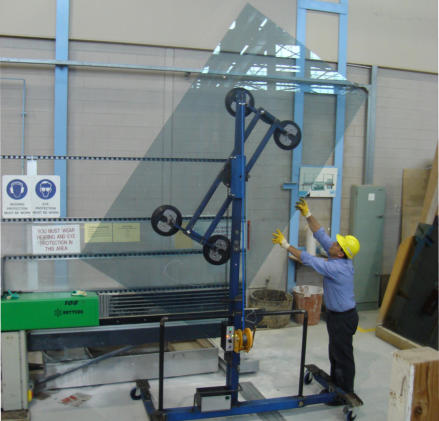

Lifting, rotating and narrow footprint make the Mule an ideal mobile glass handling solution for large sheets. It can rotate sizes up to 180”.
NARROW FOOTPRINT
IDEAL FOR TIGHT
AISLES
If you have narrow aisles in your glass shop Quattrolifts Mule is ideal for handling glass through them.

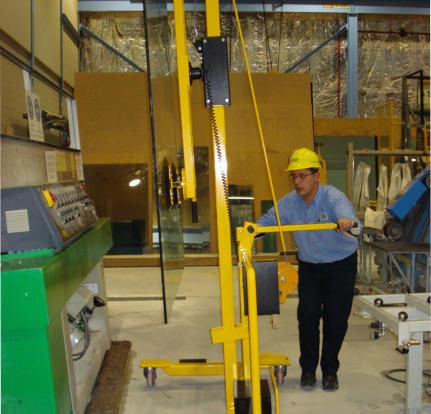

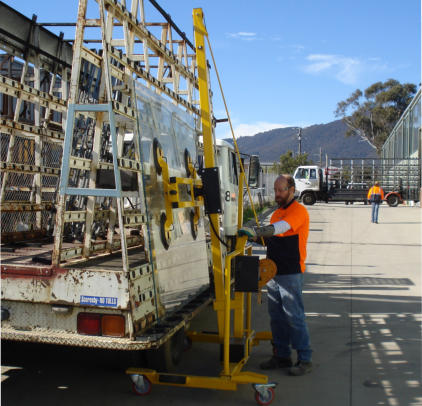

TILTING MAST
LOAD/ OFF LOAD
TRUCKS
The tilting mast on the Mule makes it easy to load and off-load external glass racks on glass trucks, edgers, and tilt cutting tables.

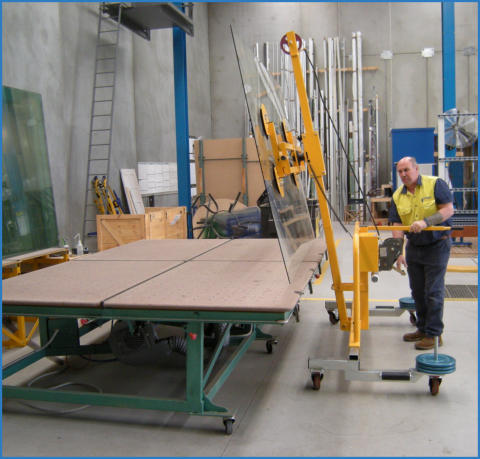

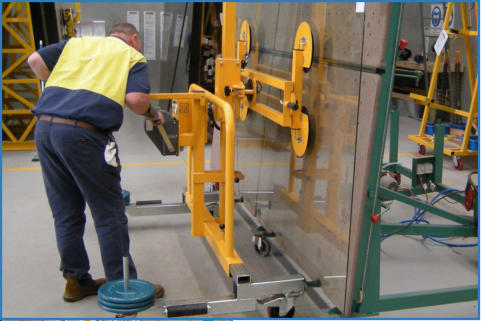

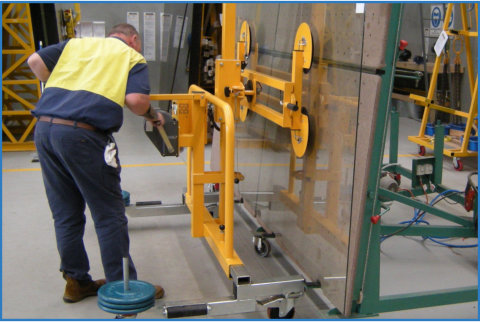

LOAD / OFFLOAD YOUR GLASS CUTTING TABLE
The Quattrolifts Mule can be used to load and
offload your vertical tilting or fixed top glass
cutting table.
With tilt top cutting tables, when loading, simply set the glass down on the pegs, lock the wheels, and release suction while gently pushing the glass on to the table. When off-laoding, the Mule is designed to tilt to the angle of the table to allow the suction cups to suck onto the glass easily when applying vacuum. Once connected, simply lock the wheels, raise the winch and go. With fixed top tables, the best way to load them is to raise the bottom edge of the glass until it sits on the edge of the table, lock the wheels, then tilt the mast forward and release the suction, to essentially free-fall the glass onto the table.
TOTAL GLASS HANDLING MOBILITY FOR YOUR SHOP
Because of the tall tilting mast, narrow footprint, the ability to lift and rotate glass, and
easily move over flat surfaces, the Quattrolifts Mule is the ideal mobile glass handling
solution for handling large glass in your glass shop.

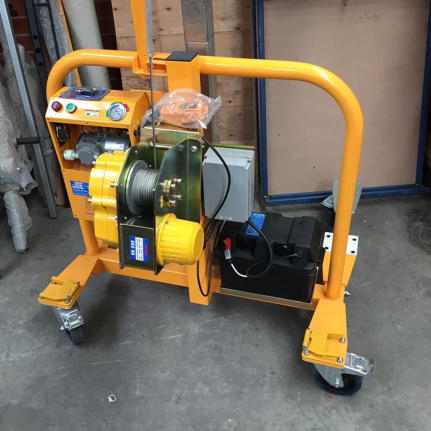

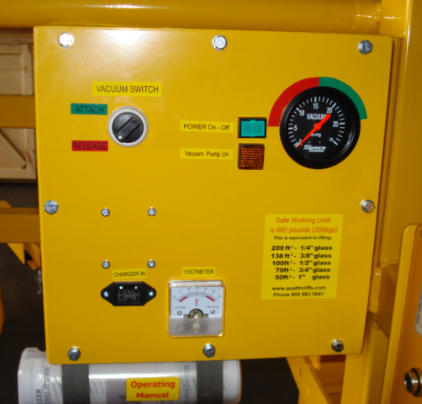

The Mule comes with a 12V rechargeable battery powered electric vacuum system for creating suction on the cups quickly.

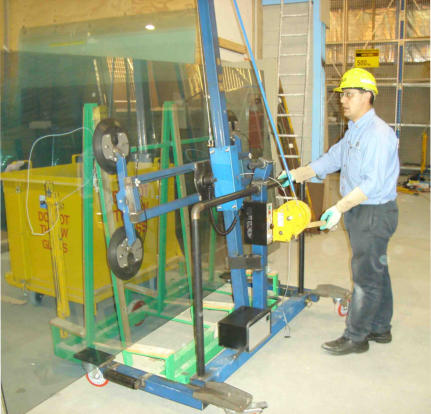

USE ANYWHERE IN SHOP
STORE GLASS OR
MOVE IT
If you have the right type of racks or dollies, the Mule can access glass set back on a deep ledge.
OTHER FEATURES

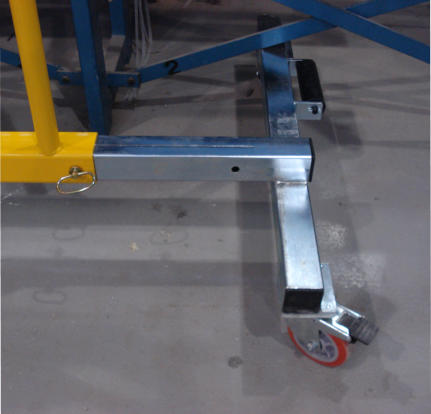

ADJUSTABLE BASE
& ROLLERS
The adjustable base allows you to get around the base of dollies or fixed racks (see pic to left) so as to access pieces that are at the back of the ledgeboard. Rollers allow you to pull glass onto the Mule from a slotted glass rack system.
